EN 1092-1 Norm

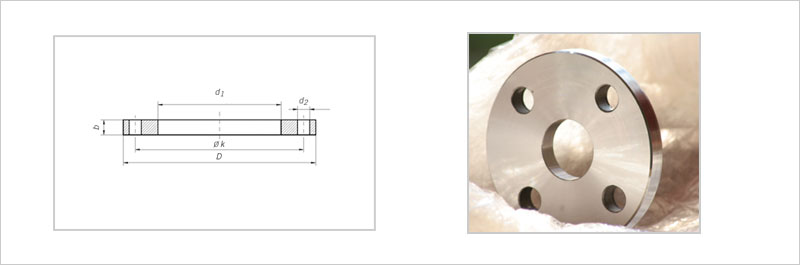

EN Norm 1092-1 Type 01 PN40
| Rated Diameter | Pipe | Flange | Screws | Weight of a flange (7,85 Kg/dm3) | |||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 320 | 375 | 36 | 30 | M27 | 12 | 17,871 |
| 250 | 273,0 | 276,5 | 385 | 450 | 42 | 33 | M30 | 12 | 29,166 |
| 300 | 323,9 | 327,5 | 450 | 515 | 52 | 33 | M30 | 16 | 44,921 |
| 350 | 355,6 | 359,5 | 510 | 580 | 58 | 36 | M33 | 16 | 66,460 |
| 400 | 406,4 | 411,0 | 585 | 660 | 65 | 39 | M36 | 16 | 96,822 |
