EN 1092-1 Norm

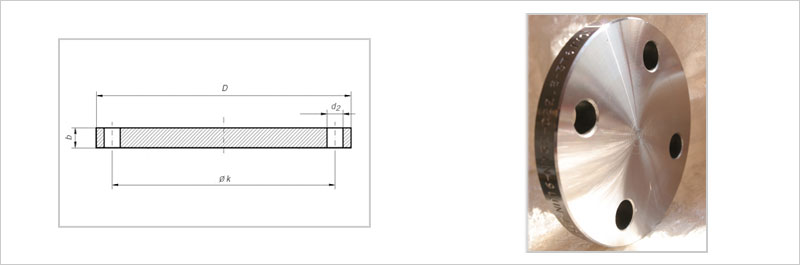

EN Norm 1092-1 Type 05 PN16
| Rated Diameter | Flange | Screws | Weight of a flange (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| k | D | b | d2 | Thread | Bolt holes | KG | |
| 15 | 65 | 95 | 16 | 14 | M12 | 4 | 0,813 |
| 20 | 75 | 105 | 18 | 14 | M12 | 4 | 1,140 |
| 25 | 85 | 115 | 18 | 14 | M12 | 4 | 1,380 |
| 32 | 100 | 140 | 18 | 18 | M16 | 4 | 2,030 |
| 40 | 110 | 150 | 18 | 18 | M16 | 4 | 2,350 |
| 50 | 125 | 165 | 18 | 18 | M16 | 4 | 2,880 |
| 65 | 145 | 185 | 18 | 18 | M16 | 4 | 3,643 |
| 80 | 160 | 200 | 20 | 18 | M16 | 8 | 4,610 |
| 100 | 180 | 220 | 20 | 18 | M16 | 8 | 5,650 |
| 125 | 210 | 250 | 22 | 18 | M16 | 8 | 8,130 |
| 150 | 240 | 285 | 22 | 22 | M20 | 8 | 10,500 |
| 200 | 295 | 340 | 24 | 22 | M20 | 12 | 16,200 |
| 250 | 355 | 405 | 26 | 26 | M24 | 12 | 25,000 |
| 300 | 410 | 460 | 28 | 26 | M24 | 12 | 35,100 |
| 350 | 470 | 520 | 30 | 26 | M24 | 16 | 48,000 |
| 400 | 525 | 580 | 32 | 30 | M27 | 16 | 63,500 |
| 450 | 585 | 640 | 40 | 30 | M27 | 20 | 96,600 |
| 500 | 650 | 715 | 44 | 33 | M30 | 20 | 133,000 |
| 600 | 770 | 840 | 54 | 36 | M33 | 20 | 226,000 |
| 700 | 840 | 910 | 58 | 36 | M33 | 24 | 285,000 |
| 800 | 950 | 1025 | 62 | 39 | M36 | 24 | 388,000 |
| 900 | 1050 | 1125 | 64 | 39 | M36 | 28 | 483,000 |
| 1000 | 1170 | 1255 | 68 | 42 | M39 | 28 | 640,000 |
